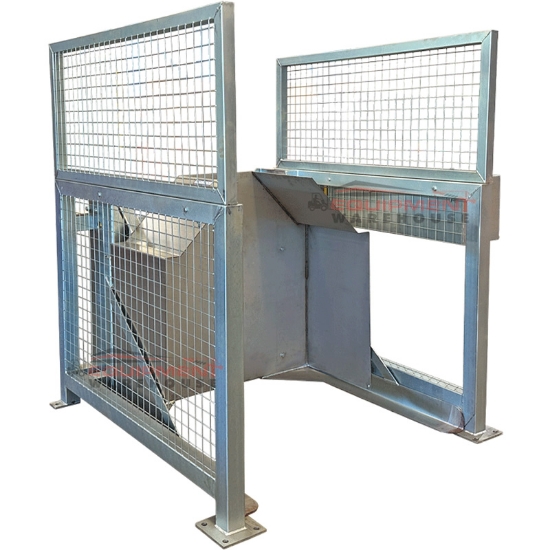

Floor Mounted Mega Bin Tipper 1000Kg WLL

This Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.
Part No: EW-FMMBT1000
*
10,650.000 (NZD) excl GST

Floor Mounted Mega Bin Tipper 1000Kg WLL



This Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.

Features:
  • Allows for 130 degree rotation of a nally bin
  • Operated by hydraulic lever
  • Stainless chute guides material flow
  • Supplied with removable side safety barriers
  • Suitable for forklift or hand pallet jack bin loading
  • Hydraulic power pack, 240-volt, 2.2kw
  • Bin retainer fitted standard to suit mega bins
  • Tipping height approx. 1100mm above floor
  • 42 second full tipping cycle
  • Suitable for use in food industry
  • Zinc frame / 304 Stainless steel chute
Specification:
  • Working Load Limit (WLL) : 1000kg
  • Rotation : 130 degree
  • Tipping Height : 1100mm above floor approx.
  • Tipping Cycle : 42 seconds
  • Overall Dimensions : 1745 x 1555 x 1400mm
  • Dimensions (at full rotation) : 1745 x 2155 x 2670mm
  • Unit Weight : 550kg approx.
